MSC-100 ThermoshakerView larger

MSC-100 Cooling Thermoshaker Incubator

AS0202000

Designed for simultaneous heating, cooling and mixing of many sample types, the MSC-100 can be supplied with different kinds of interchangeable blocks supporting various microtube and tube formats. Mixing, heating and cooling modes can be used either simultaneously or independently.

Features :

  • LCD display. It is easy to set up and use
  • Accurately controls and displays time, temperature and speed
  • Over-heating protection device ensures safety & reliability
  • Low noise working even under the speed of 1,500 rpm
  • Peltier design of MSC-100 provides thermal control in a compact unit

More details

Description
Applications
Specifications
Related products
Resources

Description

The MSC-100 Cooling Thermoshaker Incubator is a temperature controlled vortexer, useful for a variety of molecular biology applications.

Despite its modest 21 x 29 cm footprint, all popular plates and tubes are compatible, including as many as six 50 ml tubes. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long life, safety and simple integrity.

This model is heating and cooling. The block is not included, please select it here.

Specifications

 Temperature control range
 0°C ~ 100°C if ambient T°C ≤20°C
 4°C ~ 100°C if ambient T°C .≤25°C
 10°C ~ 100°C if ambient T°C ≤30°C
 Temperature setting range 0°C ~ 100°C
 Timer 1 min ~ 99h59 min
 Temperature control accuracy ±0.5°C
 Display accuracy ±0.1°C
 Mixing speed 200 ~ 1,500 rpm
 Heating time (25 to 100°C) ≤ 15 min
 Cooling time
 ≤ 30 min (from RT to RT -20°C)
 ≤ 15 min (from 100°C to 20°C)
 Mixing orbit 2 mm
 Dimension (W x D x H) 30.0 x 22.0 x 17.5 cm
Weight 8.5 kg

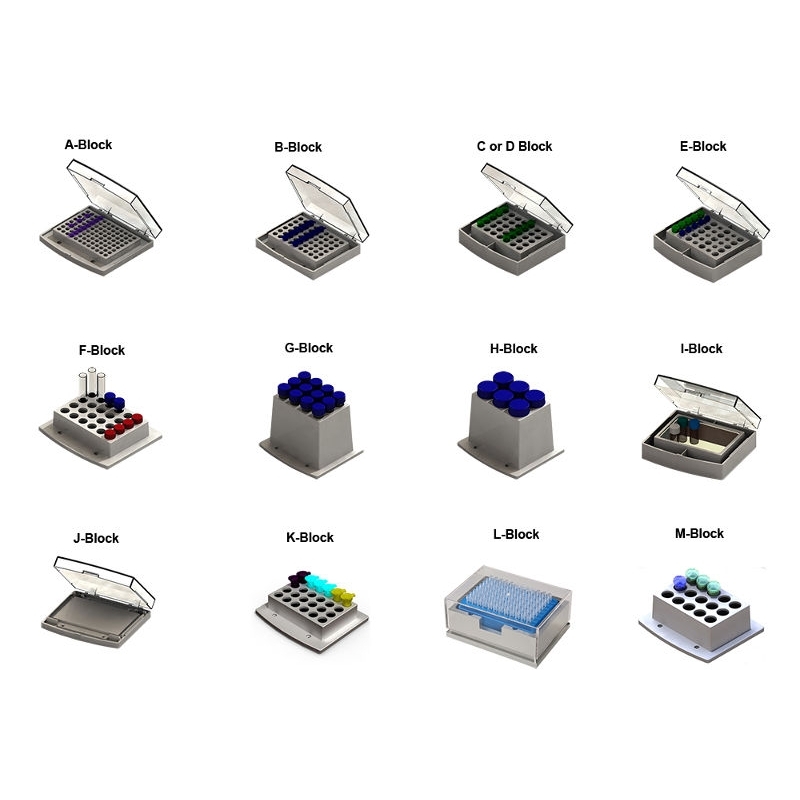

Available blocks (to be purchased separately)

Cat#TypeDescriptionMax. speed
AS0105101A96 x 0.2 ml1,500 rpm
AS0105102B54 x 0.5 ml1,500 rpm
AS0105103C35 x 1.5 ml1,500 rpm
AS0105104D35 x 2.0 ml1,500 rpm
AS0105105E15 x 0.5 ml + 20 x 1.5 ml1,500 rpm
AS0105106F24 x diameter ≤ Φ12 mm tubes1,200 rpm
AS0105107G12 x 15 ml Falcon750 rpm
AS0105108H6 x 50 ml Falcon750 rpm
AS0105109I103 x 67 x 30 mm bath block1,500 rpm
AS0105110J96 x 0.2 ml microplate1,500 rpm
AS0105111K24 x 5 ml tubes (Ø = 14 mm)1,200 rpm
AS0105112L96-deep well plate800 rpm
AS0105113M15 x 5 ml Eppendorf tubes (Ø = 16.5 mm)

Applications

  • Denaturation of DNA, RNA and proteins
  • Lipid extractions
  • Yeast and bacteria cultivation
  • Restriction digests
  • Reverse transcription
  • DNA/plasmid isolation
