0.2 ml PCR Strip Magnetic Stand Low Volume

MSRLV08

Designed specifically for magnetic bead separations for 8-strip 0.2 ml PCR tubes. Volumes as low as 5 µl can be achieved without the adverse affect of pulling beads out of fluid resulting in higher yields.

Features :

  • Compatible with most 0.2 ml PCR 8-strip tubes with or without caps
  • Angled tube holes allow strips to come close to magnets
  • Each tube has its own individual strong neodymium magnet

More details

Description
Applications
Specifications
Related products
Resources

Description

This rack was designed specifically for maximum performance from PCR strips. One side is for 50 µl – 0.2 ml volumes, while the reverse side can be used for volumes as low as 5 µl. Many racks that claim to work in low volumes clearly pull the beads out of the fluid, this will result in substantial loss in yield. When used correctly, you can see that this rack keeps the bead pellet suspended in the fluid.

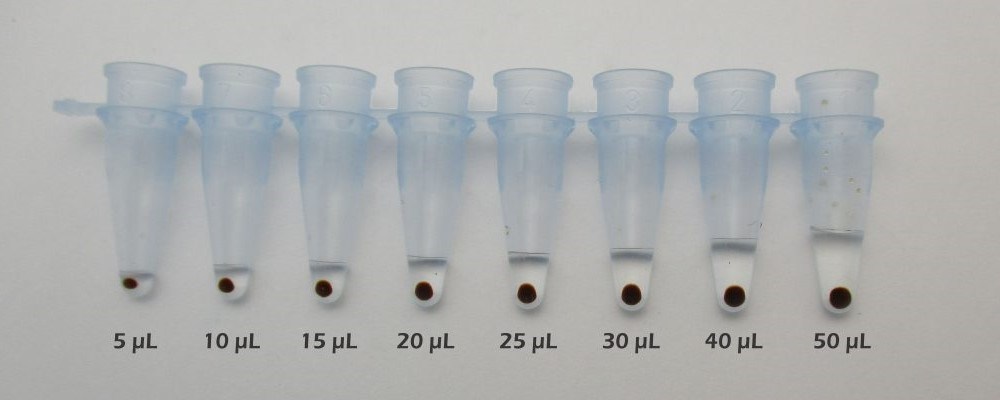

Low volume side of rack

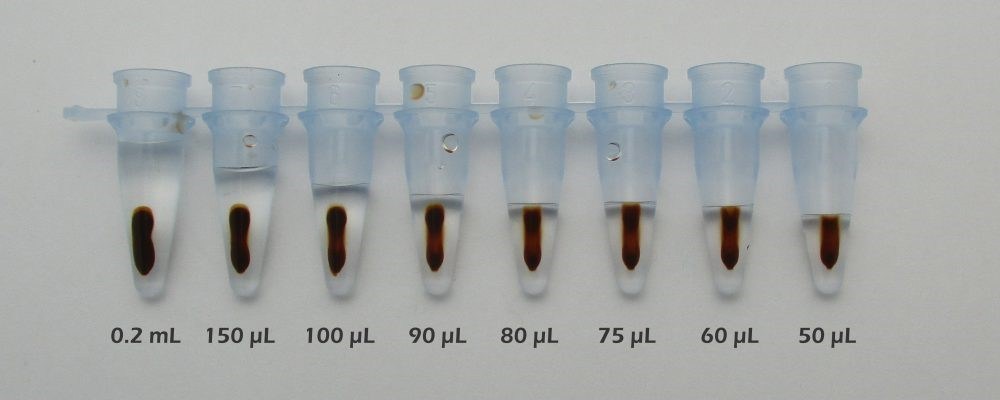

Large volume side of rack

Strong NdFeB magnets
Super strong Neodymium magnets collect beads at inner wall of each tube

Fast separation
The strongest possible magnets are used for each application

Low volume
Volumes as low as 5 µl can be achieved without the adverse affect of pulling beads out of fluid resulting in higher yields

Solid design
Manufactured from solid aluminum and hard coat anodized for years of trouble free use

Compatibility
Compatible with standard 0.2 ml PCR strips. Holds up to 2 x 8-strips with any magnetic beads

Specifications

Size80 mm Long x 34.8 mm Tall x 37.6 mm
Weight110g
Magnets50 MGO NdFeb

Applications

  • DNA/RNA purification
  • PCR cleanup
  • ChIP assays

Resources

Product selection chart

Download (466.42k)
