Probes For Q125 Sonicator

Reference: -

Probes (also known as horns) are solid titanium accessories for the Sonicator that process a range of different sample volumes. They come in many shapes and sizes. Using the appropriate size probe can greatly reduce processing times and ensure an entire sample is processed properly. The sample volume processed is directly related to the tip diameter. Smaller tip diameters are best for small samples, larger probes are required as sample volume increases.

help
Get information
CHF 459.00
Tax excluded
Probe Type: Select
An account is required to purchase this item.

Standard probes

Probes (also known as horns) are made from titanium and machined to specific sizes and shapes. When driven at their resonant frequency, they expand and contract longitudinally. This mechanical vibration is amplified and transmitted down the length of the probe. In liquid, the probe causes cavitation which constitutes the main mechanism for sample processing.

Choosing the appropriate horn is extremely important. The sample volume to be processed is directly related to the tip diameter. Smaller tip diameters (Microtip probes) deliver high intensity sonication, but the energy is focused within a small, concentrated area. Larger tip diameters can process larger volumes, but offer lower intensity. Probes are offered with replaceable or solid tips.

Probe tips will pit or erode over time and require replacement. Using an excessively worn tip can affect your results and possibly overload the generator. Solid probes must be used for samples containing organic solvents or low surface tension liquids.

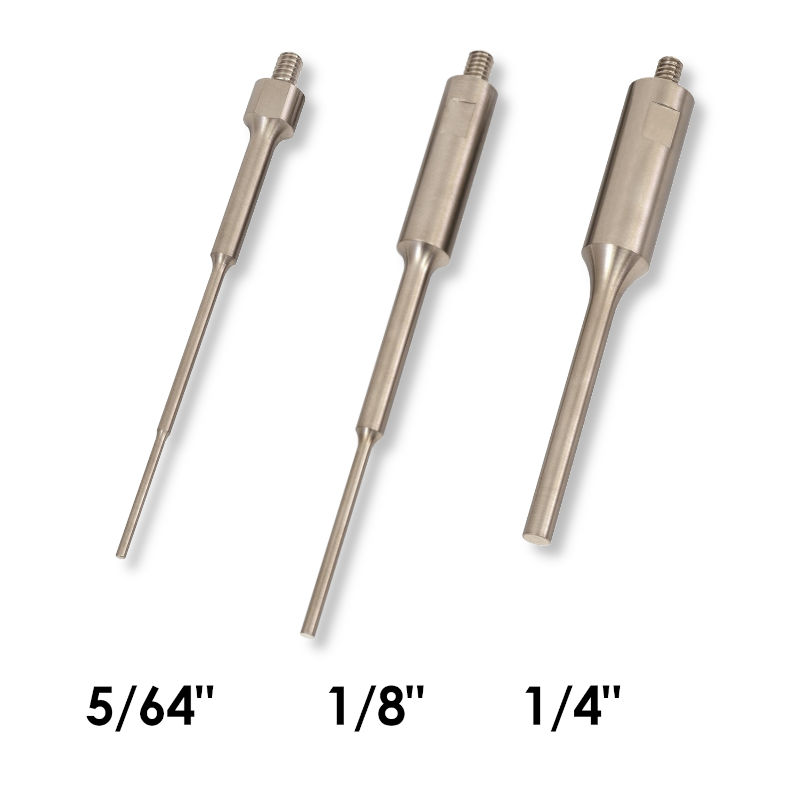

Part # Processing volume Tip diameter Max. amplitude (microns)
Q4423 0.2-5 ml 5/64" (2 mm) 200 μm
Q4422 0.5-15 ml 1/8" (3.2 mm) 180 μm
Q4435 10-50 ml 1/4" (6.4 mm) 120 μm
