CellDrop Fluorescence Cell Counter [PROMO]

Reference: I2010

25% OFF BRIGHT FIELD AND FLUORESCENCE CELL COUNTERS
CONTACT US FOR MORE DETAILS

CellDrop FLi Cell Counter features unique DirectPipette™ Technology to eliminate plastic slides and cumbersome hemocytometers from routine cell counting.

Features :

  • DirectPipette™ Technology
  • Accurate across the widest range of cell size and density
  • Easy-to-learn, powerful-to-use

CellDrop FLi Cell Counters (fluorecence and bright field) feature unique DirectPipette™ Technology to eliminate plastic slides and cumbersome hemocytometers from routine cell counting. Featuring dual fluorescence and/or brightfield optics, variable height sample chamber, and powerful, easy-to-use analysis software, the CellDrop enables the fastest cell counts, viability assessment, and GFP transfection efficiency measurements across the widest range of cell density, cell type and application.

DirectPipette™ technology

The CellDrop Series brings the familiar Load, Measure & Wipe Clean functionality of microvolume spectrophotometers to cell counting. Traditional plastic slides or glass hemocytometers are replaced by two permanent optical sapphire surfaces. These are positioned parallel to one another by a calibration-free, high-precision mechanism, forming a chamber of precisely defined height. 10 µl of cell suspension is pipetted into the chamber, analyzed and simply wiped away with a dry laboratory wipe. The powerful live-view image allows instant verification that cleaning has been successful.


Accurate across the widest range of cell size and density

Using conventional counting methods, samples with high or low cell densities require time consuming dilution or concentration steps. The variable height chamber of the CellDrop adjusts chamber depth automatically, delivering the most accurate counts over the widest cell densities – 7 x 102 to 2.5 x 107. Chamber height can also be adjusted to accommodate almost any cell with a diameter range of 4 to 400 µm.

Easy-to-learn, powerful-to-use

Designed by life scientists, the CellDrop EasyApps® Software exceeds the functionality of high cost cell counters while delivering the ease of use of simpler systems. EasyApps combines with a high definition, 7″ touchscreen interface to give error-free operation with sample loading to data exporting in seconds. Pre-installed with a range of common applications for one-touch analysis of assays such as Brightfield, Trypan blue, AO/PI, GFP and Yeast and the ability to create custom methods makes the CellDrop a flexible workhorse for the busy, multi-user lab.

Hazardous samples ?

The small footprint and onboard processing of CellDrop allow it to fit inside most flow hoods where required. For applications that require the cells to be contained when reading, all instruments also have the ability to read samples in common disposable plastic slides and reusable slides without the need for additional adaptors.



Features

  •   Intuitive app icons for quick recognition
  •   7″ HD Touchscreen, fluid pinch and zoom, glove compatible touch interface
  •   Live HD preview of cell samples
  •   Real-time cell size gating on main results screen
  •   High definition cell outlining
  •   Password protected user accounts for project and data management
  •   Thousands of measurements stored onboard instrument (60 GB SSD is standard)

User interface

CellDrop Menu.jpg

Models

Pay-As-You-Go

Get all the convenience of consumable-free cell counting with a lower initial investment. The PAYG option is ideal for labs with smaller capital budgets or lower throughput. Simply purchase a bundle of Count Codes according to your lab needs and EasyApps will use one for each sample measured.

Apply codes to a single account or share amongst users. With the robust admin options available in EasyApps® you are in control and if your needs change, simply upgrade to the Unlimited (UNLTD) version of the CellDrop product.

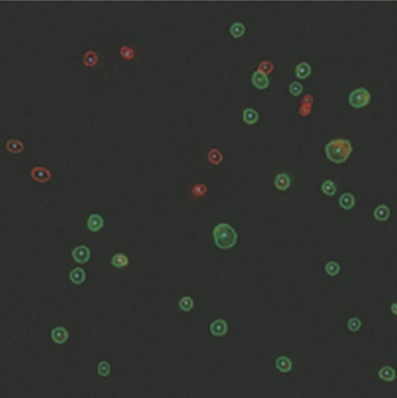

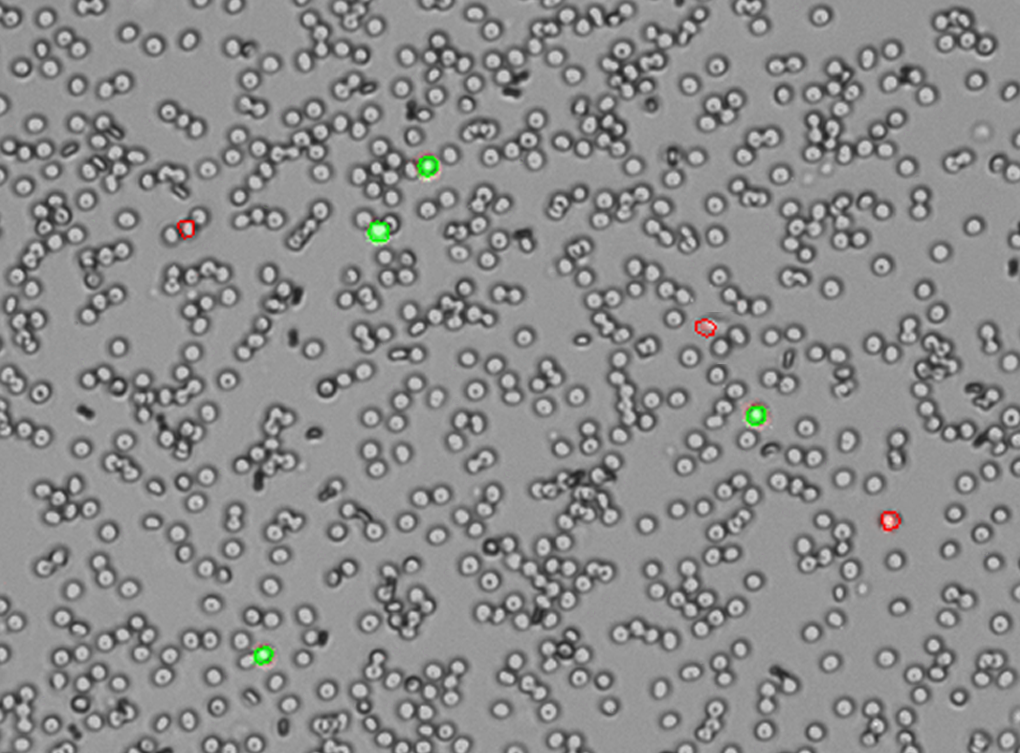

Primary cells


Accurately count and determine viability of PBMCs in the presence of RBCs / debris with AO/PI

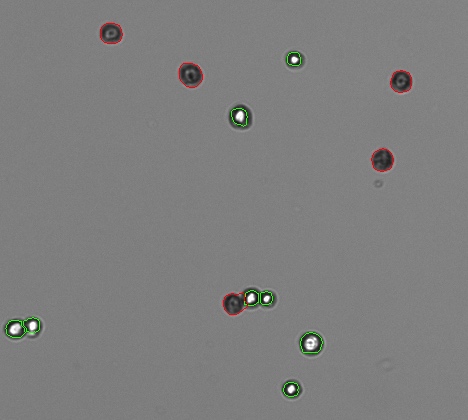

Tissue culture


Viability staining of tissue culture samples (low debris) with Trypan Blue or Erythrosin B

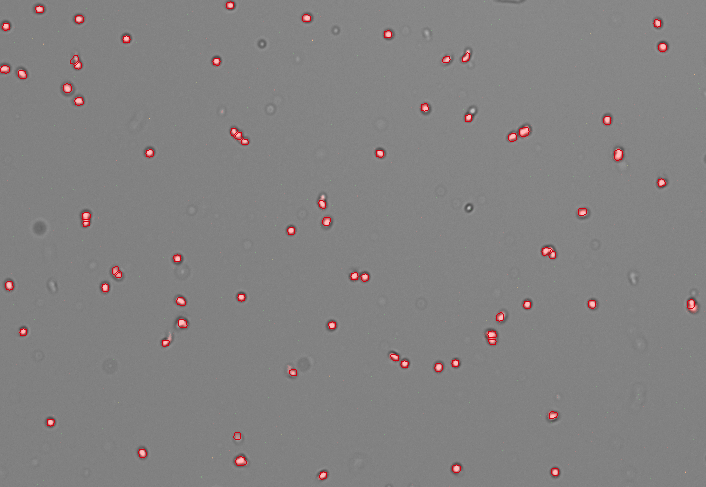

Isolated nuclei

Count freshly isolated nuclei using AO/PI

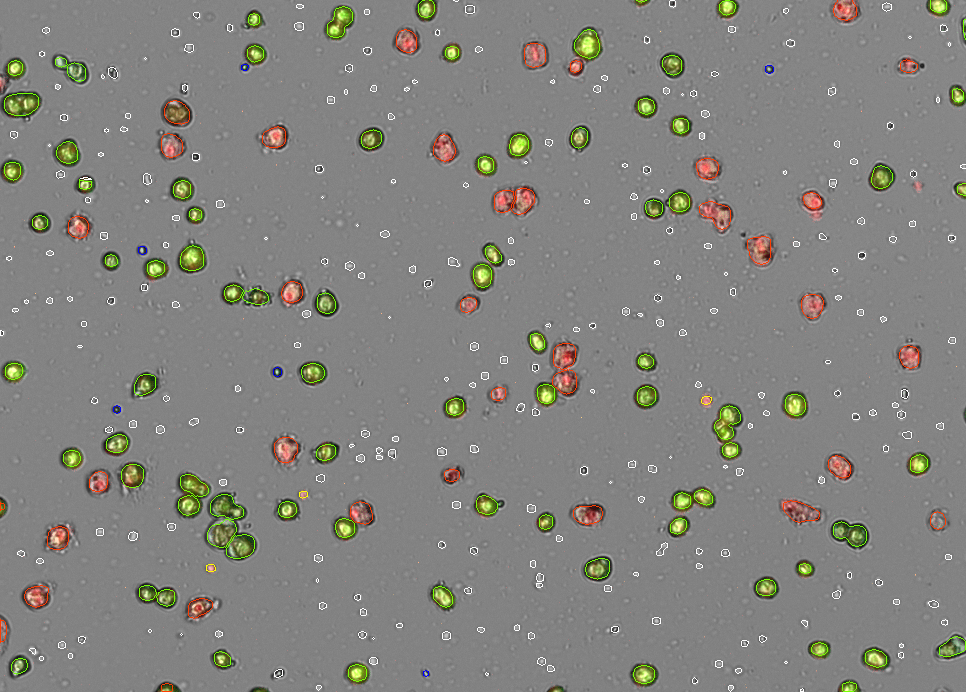

Hepatocytes

Count and determine viability of hepatocytes

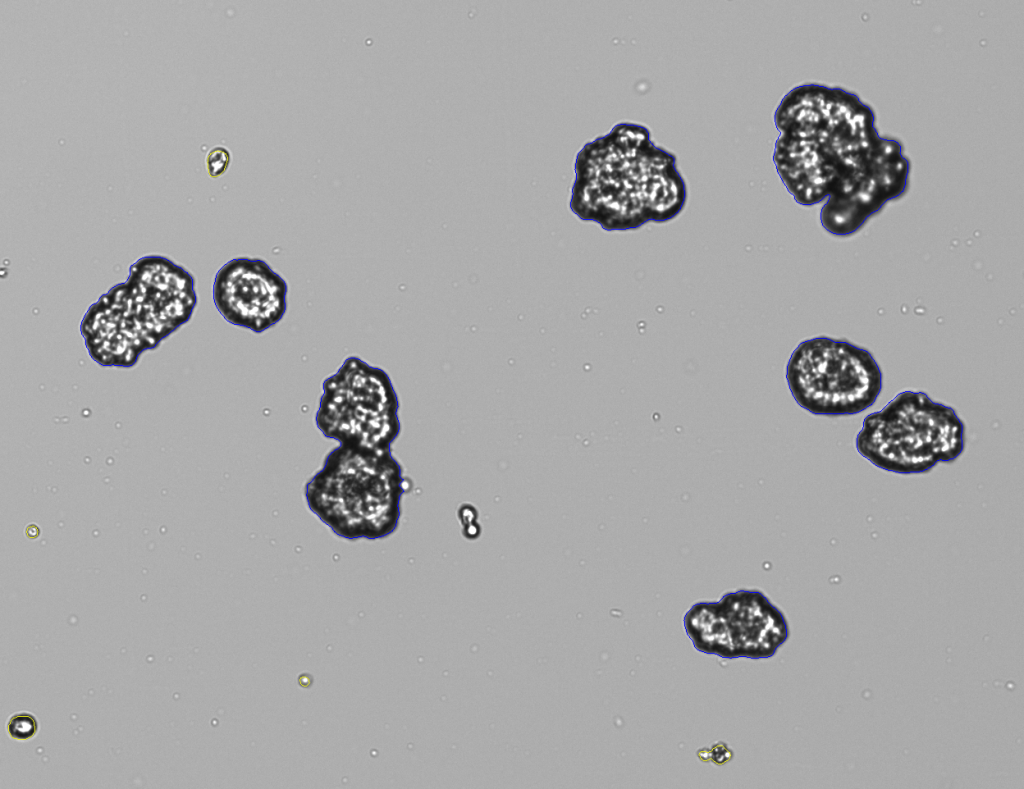

Organoids

Count 3D cell culture structures and dissociated objects in suspension

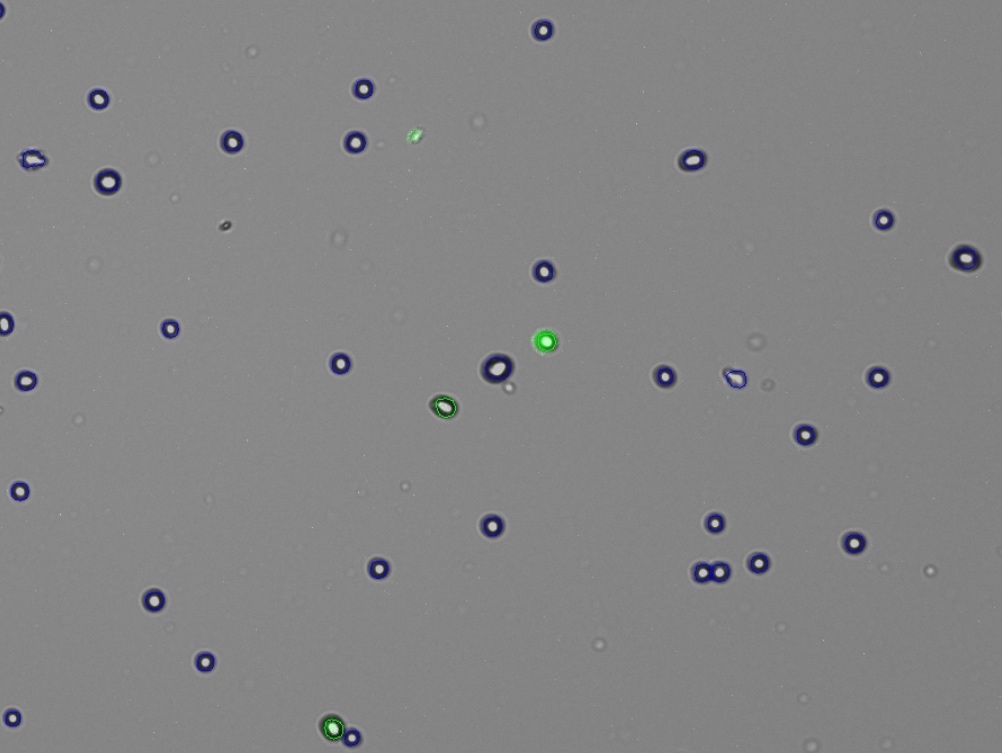

GFP

Measure GFP transfection efficiency

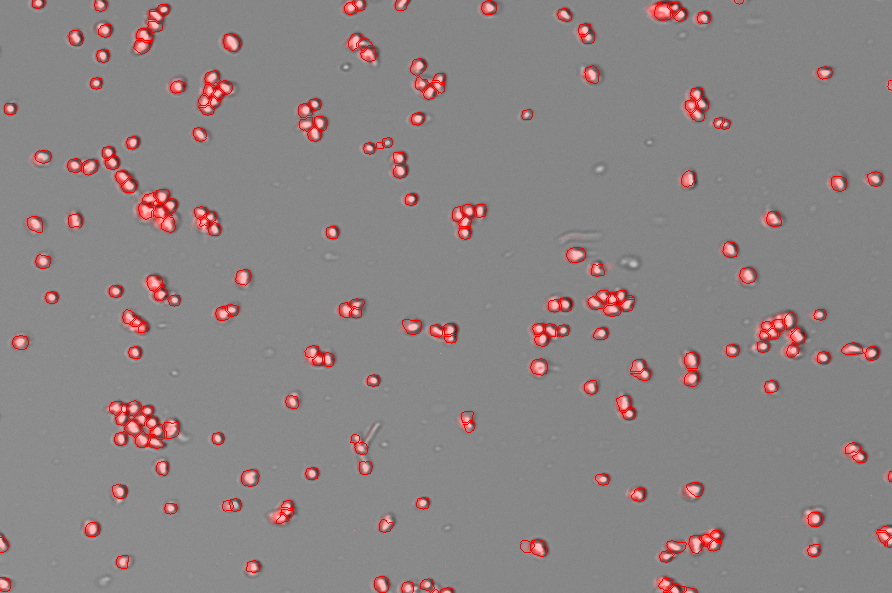

Fixed samples

Determine density and degree of clustering for fixed nuclei or fixed cells using Propidium Iodide (PI)

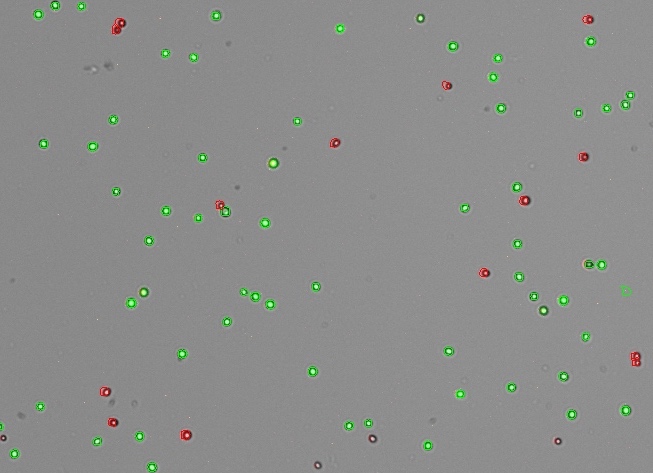

Yeast

Yeast counts and viability determination using brightfield or dual fluorescence

Pollen

Viable pollen grains counted with FDA fluorescent stain

Algae cells

Algae cells counted using the intrinsic fluorescence from chlorophyll

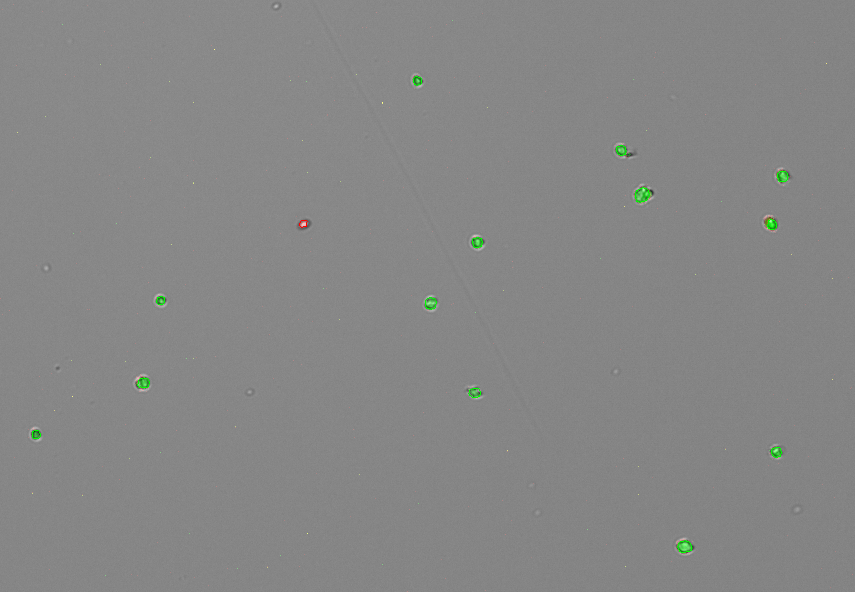

Insect cells

SF9 cells counts and viability determination using AO/PI fluorescent dye staining

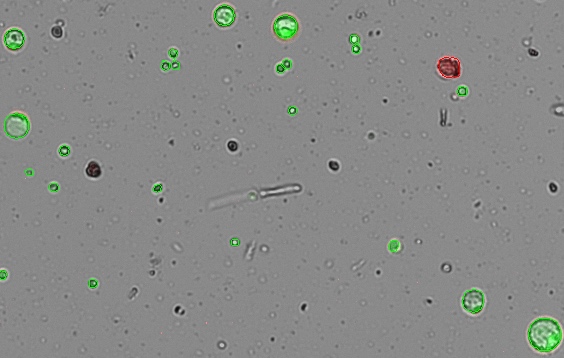

Protoplasts

Plant protoplasts counts and viability determination with FDA and Propidium Iodide (PI) fluorescent dyes

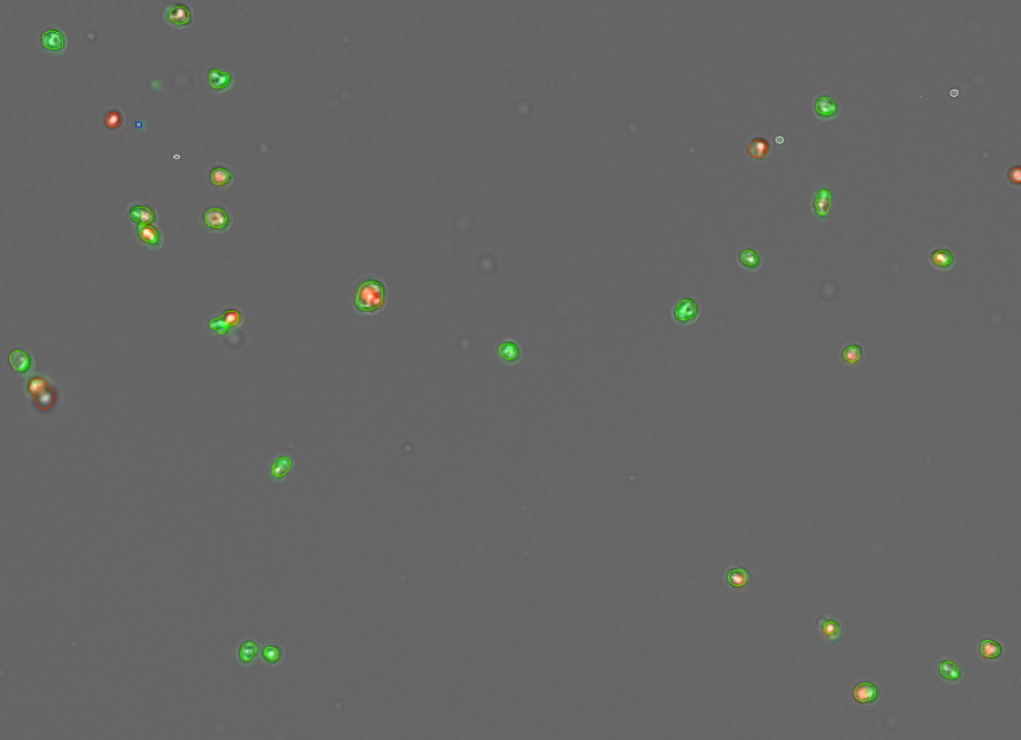

Apoptosis

Detect and classify live cells, necrotic cells, and cells in the various stages of apoptosis

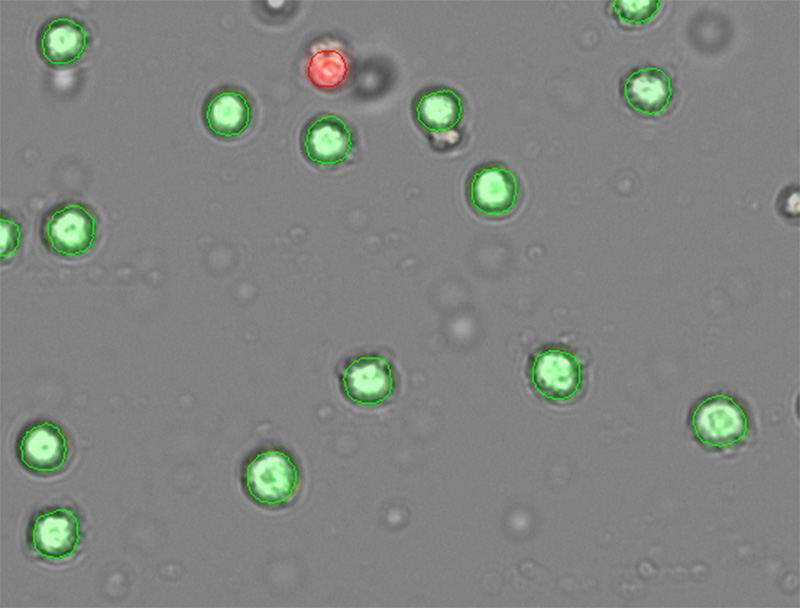

Stem cells

Count stem cells and measure viability using AO/PI

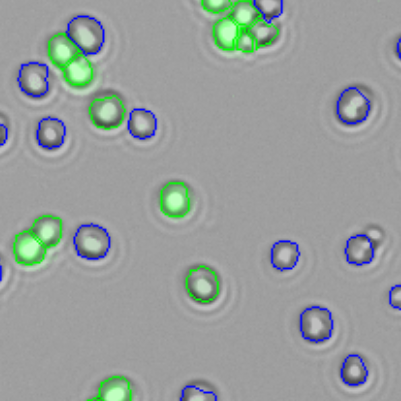

Yeast vitality

Count and determine the percent of metabolically active yeast cells

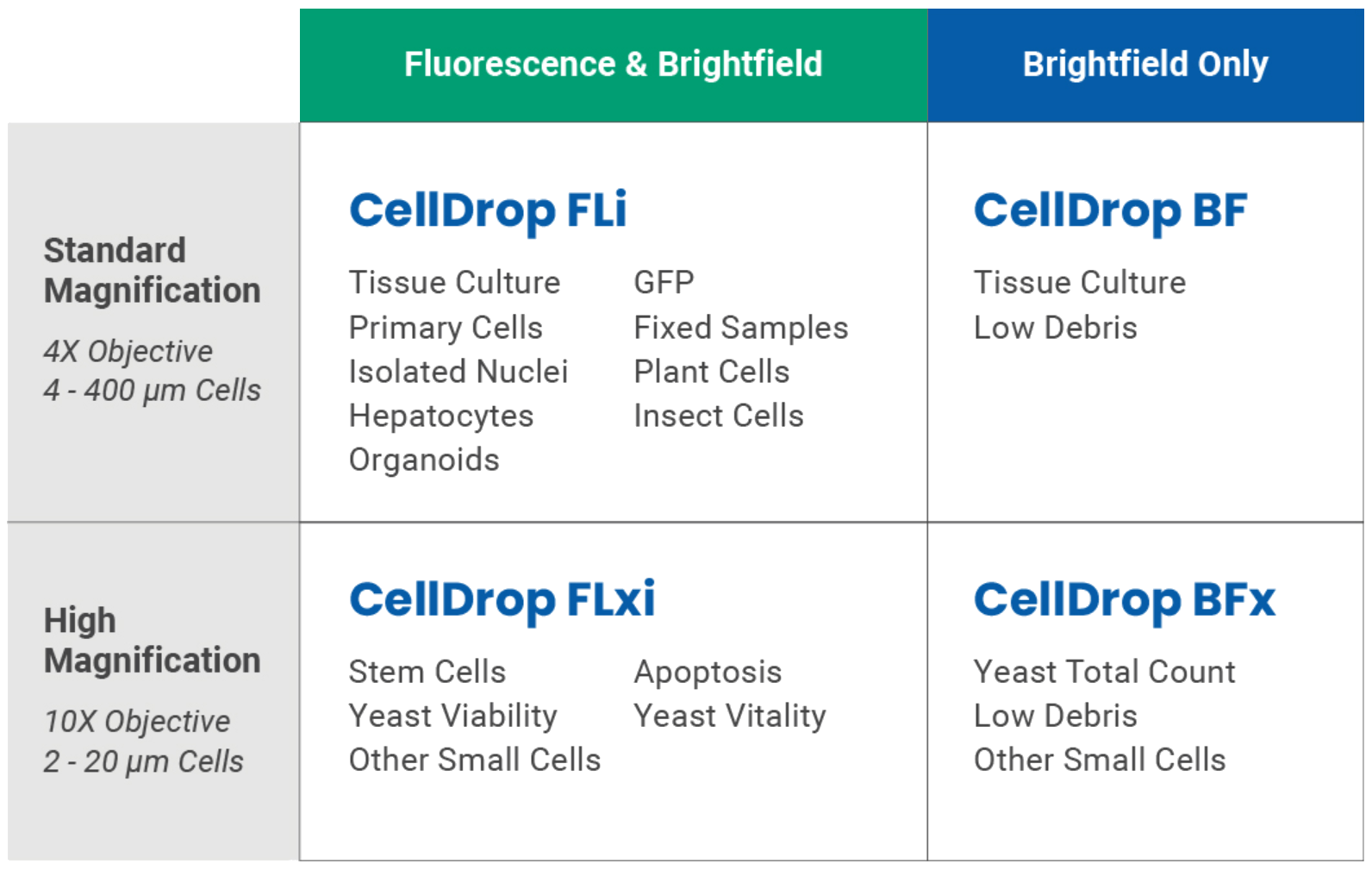

CellDrop FLi CellDrop BF CellDrop FLxi CellDrop BFx
Dynamic range 7 x 102 to 2.5 x 107 cells/ml 4.3 x 103 to 2.1 x 108 cells/ml
Cell size range 4 - 400 µm 2 - 20 µm
Magnification 4X 10X
Sample volume 5.0 µl @50 µm chamber height
10 µl @100 µm chamber height (standard)
40 µl @400 µm chamber height
Measurement speed Brightfield: 3 seconds @1 x 10^6 cell/ml
Dual Fluorescence: 8.5 seconds @1 x 10^6 cell/ml
3 seconds Brightfield: 3 seconds @1 x 10^6 cell/ml
Dual Fluorescence: 8.5 seconds @1 x 10^6 cell/ml
3 seconds
Optical modes Dual Fluorescence
Single Fluorescence
Brightfield
Fluorescence + Brightfield
Brightfield Dual Fluorescence
Single Fluorescence
Brightfield
Fluorescence + Brightfield
Brightfield
Sample surfaces Optical Sapphire
Brightfield illumination LED 530 nm
Fluorescence illumination LED 470 nm - LED 470 nm -
Emission filters AO 525 nm ± 25 nm
PI 645 nm ± 37 nm
- AO 525 nm ± 25 nm
PI 645 nm ± 37 nm
-
Images 2048 x 1536 px 2880 x 2160 px 2048 x 1536 px 2880 x 2160 px
Gesture recognition Multipoint touch, swipe, pinch
Display High Definition 1280 x 800 7” color display
Glove compatibility All common lab gloves
Focus Autofocus, or user-controlled onscreen coarse and fine adjustment
Connectivity Wi-Fi, Ethernet, HDMI, 3 USB ports
Dimensions (W x D x L) 21.0 x 18.0 x 37.0 cm
Weight 4.4 kg
Operating voltage 12 VDC
