QFX Fluorometer


The QFX Fluorometer is more sensitive and reproducible than any other instrument in its class.

Features :

  • Best-in-Class dynamic range & sensitivity
  • Flexibility to choose any existing fluorescent assay
  • UV, blue, green and red fluorescence
  • Android™ OS with intuitive EasyApps®

More details

Related products


The QFX Fluorometer is more sensitive and reproducible than any other instrument in its class. The QFX is a powerful solution for all fluorometric applications where enhanced specificity or sensitivity are needed. Quantify nucleic acids and proteins using four fluorescent channels with a choice of common assays built into measurement apps or easily create custom apps for the ultimate in fluorometer flexibility. The QFX outperforms Qubit® and other tube fluorometers giving superior data quality, more powerful software and full network integration for seamless data handling.

Combined with the DeNovix Fluorescence Assays, the QFX offers quantification of DNA between 0.5 pg/µl and 4,000 ng/µl. The ideal solution for quantification of degraded or low concentration samples, even in the presence of common contaminants.

Compare the QFX and the Qubit® Fluorometer.

Easy to learn. Fast to use.

The QFX features the most powerful and intuitive software of its type. Designed by life scientists, pre-installed EasyApps® and a breakthrough Android™ touchscreen interface delivers error-free operation and sample to data in under 2 seconds. Every instrument is ready to measure right out of the box – no PC set-up or software installation.

Fx main with assays.png

Assay independance

Choose the assay you wish to work with, not the one dictated to you by a fluorometer manufacturer. DeNovix EasyApps® are pre-configured with a large selection of commercially available quantification assays. Choose easy two-point standard curve DeNovix Fluorescence Assays or Qubit® and Quantus™ assays for dsDNA, RNA or protein quantification.

Multiple channels with the researcher in mind

DeNovix Fluorometers include four emission and excitation channels to provide scientists the flexibility to use the fluorophore and detection ranges of their choice. Choose from UV (375 nm), Blue (470 nm), Green (525 nm) or Red (635 nm) excitation sources.

Assays included in DeNovix EasyApps®

Choose from one of these pre-programmed assays, or create your own !

  • Fluoro dsDNA : DeNovix dsDNA Broad Range, DeNovix dsDNA High Sensitivity, DeNovix dsDNA Ultra High Sensitivity, Quant-it™ PicoGreen® , Quant-it™  dsDNA HS, Quant-it™  dsDNA BR, Qubit®dsDNA BR, Qubit®dsDNA HS, Quantifluor® dsDNA and Quantifluor® One dsDNA
  • Fluoro RNA : Quant-it™ Ribogreen, Quant-it™ RNA BR, Quant-it™ RNA HS, Qubit® RNA BR, Qubit® RNA HS, Quantifluor® RNA, Quant-it™ microRNA, Qubit® MicroRNA
  • Fluoro ssDNA : Quant-it™ OliGreen, Qubit® ssDNA, Quantifluor® ssDNA
  • Fluoro Protein : Quant-it™ Protein, Qubit® Protein


Unmatched connectivity

Built-in Wi-Fi, Ethernet and USB allows easy export of data you want in the format you need. Email a .csv or color .jpg of your results, save data to LIMS or network drives, print results or graphs to network and label printers and more !

Color choices

QFX Fluorometers are available in four color choices :

QFX colors.jpg


Fluorescence Detection

Light SourcesBlue LED (~470 nm), Green LED (~525 nm),
Red LED (~635 nm), UV LED (~375 nm)
Excitation FiltersBlue: 442-497 nm, Green: 490-558 nm,
Red: 613-662 nm, UV: 361-389 nm
Emission FiltersChannel 1: 514-567 nm, Channel 2: 565-650 nm,
Channel 3: 664-740 nm, Channel 4: 435-485 nm
DetectorsPhotodiode, detection range 300-1000 nm
Tube Type0.5 mL Real Time thin-wall PCR tube (polypropylene)



QFX key features

  •   Intuitive app Icons for quick recognition
  •   Familiar Android navigation touch gestures and functional icons
  •   Fluid pinch, zoom glove compatible touch interface
  •   AutoRun option for streamlined operation
  •   Optimized screens for reports and graph overlays
  •   Password protected accounts for project and data management
  •   Absorbance represented as 1 cm equivalent for all apps- no confusion between applications
  •   Sample name field is key-focused for easy barcode reader use
  •   All data is automatically archived and easily exported in tab-delimited format
  • Preconfigured commonly used Qubit®, Quant-it™ and Quantifluor® assays
  • Easy configuration of additional assays
  • Single or multi-replicate standard curve options
  • User control of  line fit, trend line analysis, subtraction of blank
  • User control of assay and reported sample concentration units
  • Save and re-use curves and lists of standard concentrations

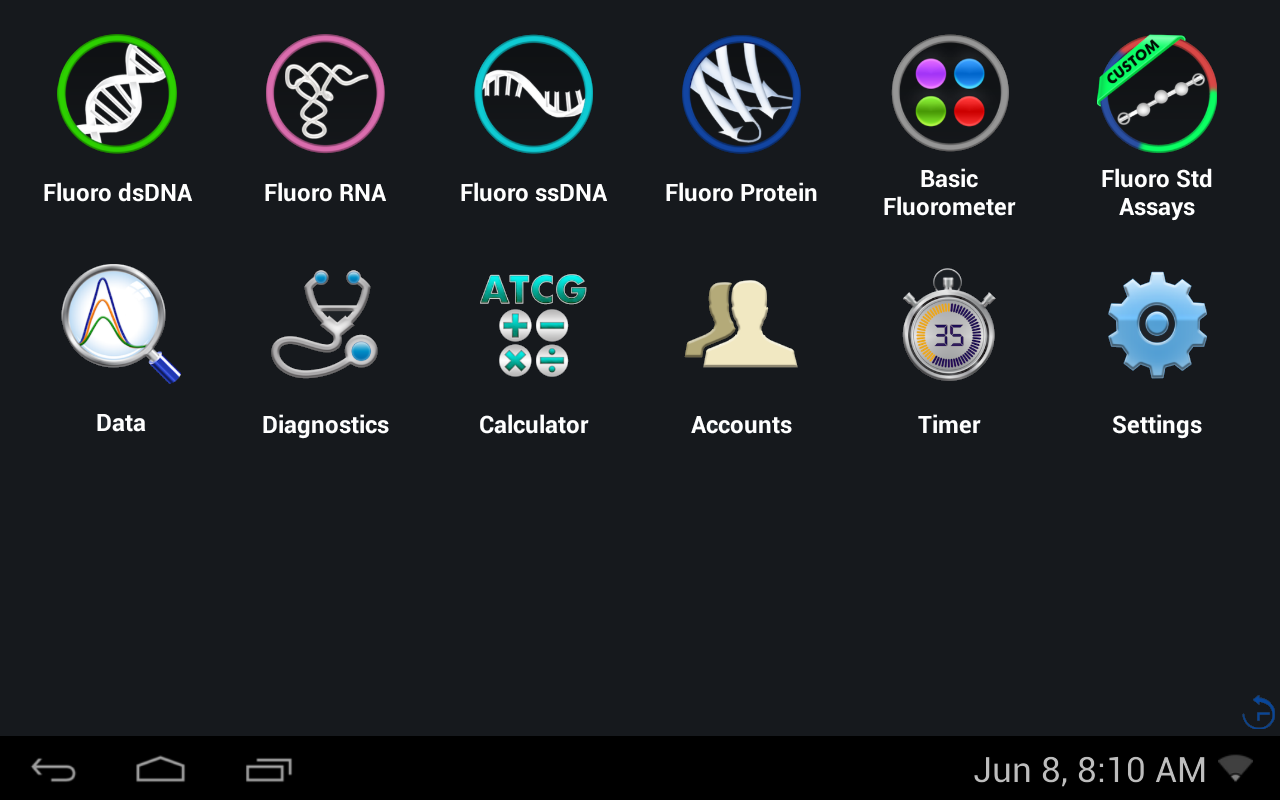

Home Screen FL_small.jpg
