MR1 Mini Rocker Shaker


Mini Rocker–Shaker MR-1 provides regulated gentle rocking motion of the platform and is ideal for mini gel destaining after electrophoresis, conducting Northern, Southern and Western blot analysis.

Features :

  • Compact
  • 20 x 20 cm platform

More details



Shaker is a compact, noiseless device designed for personal use. The use of direct drive and brushless motor allows continuous mixing up to 7 days and ensures reliable, trouble-free operation for more than 2 years.

Non–slip, temperature resistant, silicone mat located on the rocker’s platform provides stable position for vessels during shaking. Optional dimpled PDM mat fixes tubes of different sizes.

Shaker can be utilized in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.

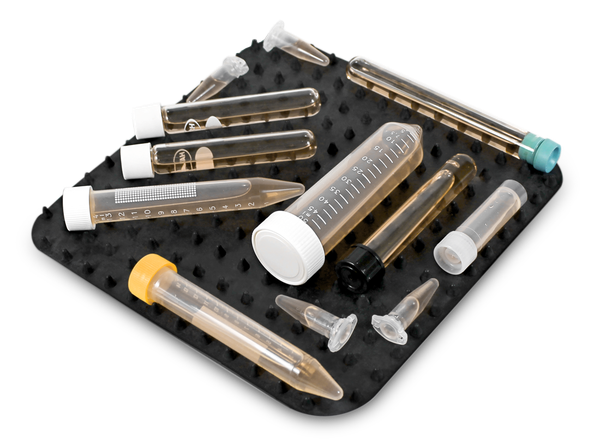

Optional dimpled mat PDM prevents different size tubes from rolling around the platform.

PDM mat.png

Ordering InformationOrder Code
MR1 Mini Rocker Shaker 230VAC 50/60Hz Euro plug with standard matBS-010152-AAG
PDM dimpled matPDM


Mixing frequency range5–30 oscil/min
Fixed tilt angle
Maximum continuous operation time168 hours
Direct drive mechanismYes
Digital time setting1 min-24 hrs / non-stop
Non-slip silicone mat is supplied as standardYes
Maximum load1 kg
Platform working area215 x 215 mm
Overall dimensions (W × D × H)22.0 x 20.5 x 12.0 cm
Weight2.1 kg
Input current/power consumption12V, 320 mA / 3.8W
External power supplyInput AC 100–240V; 50/60 Hz; Output DC 12V
