Description
Microprocessor control allows performing not only Vertical rotation (1) of the platform, but also Reciprocal rotation (2) as well as Vibration (3). These three motion types can be performed separately, pairwise and in cycles, periodically repeating the sequence of three motion types. Multi–Rotation option of Biosan instruments substantially expands possibilities and enhances efficiency of sample preparation for the examined materials and allows adjusting the mixing procedure according to the individual tasks.
The Programmable Rotator RS-24 can be used for variety of applications in modern life science laboratories: for hybridization reactions, cell growing, soft extraction and homogenisation of biological components in solutions, as well as for reactions of binding and washing of magnetic particles.
During the stop mode the platform does not perform extra turnover and stops in a horizontal plane. Additionally there is a possibility of setting the plane with respect to which platform oscillates vertically or horizontally.
The Programmable Rotator RS-24 can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C. Low voltage external power supply (12V) provides electrical safety in humid environment.
Accessories

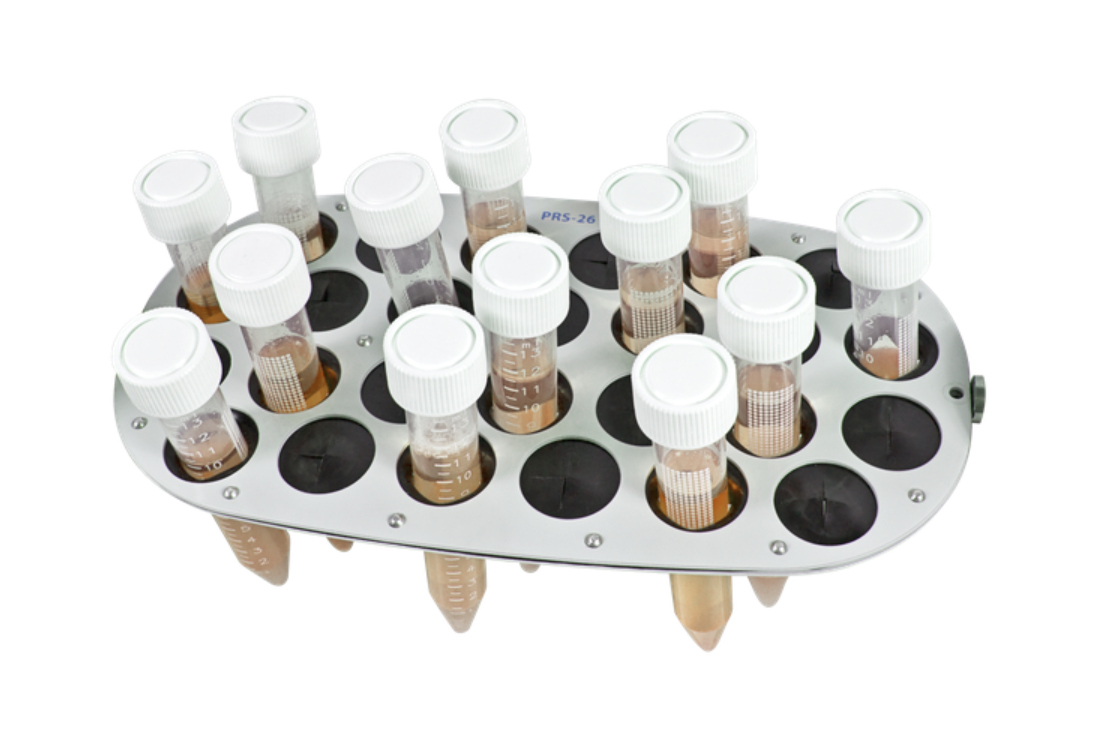

PRS-26:

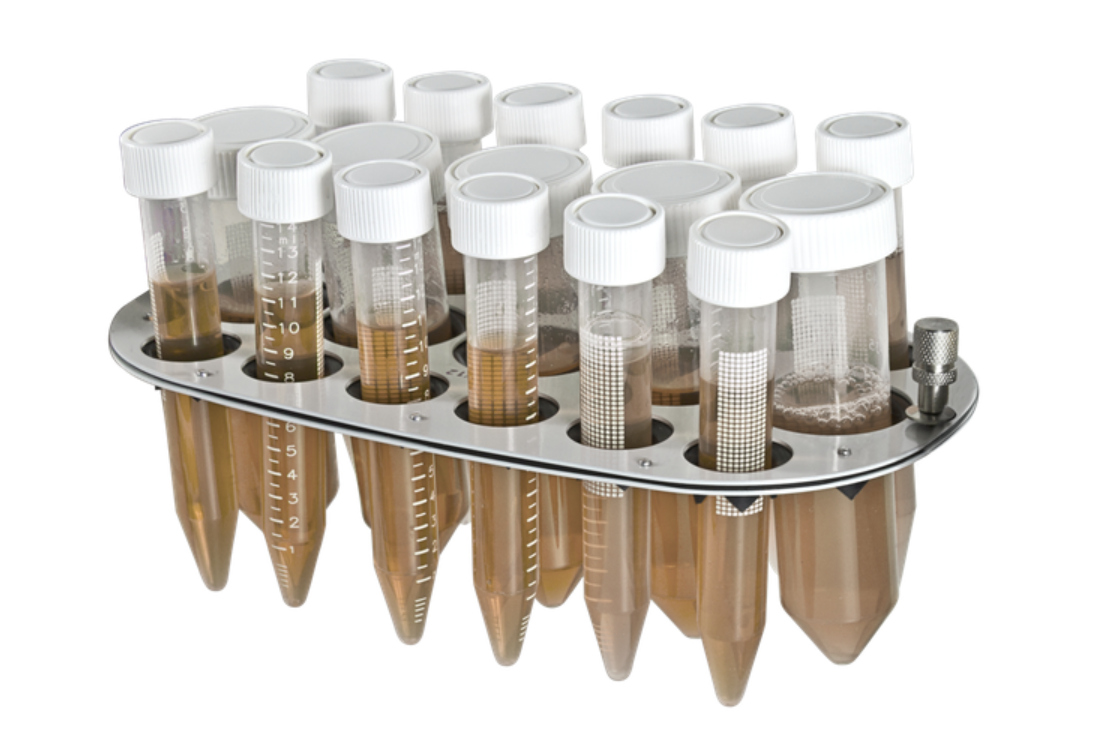

PRS-5/12:

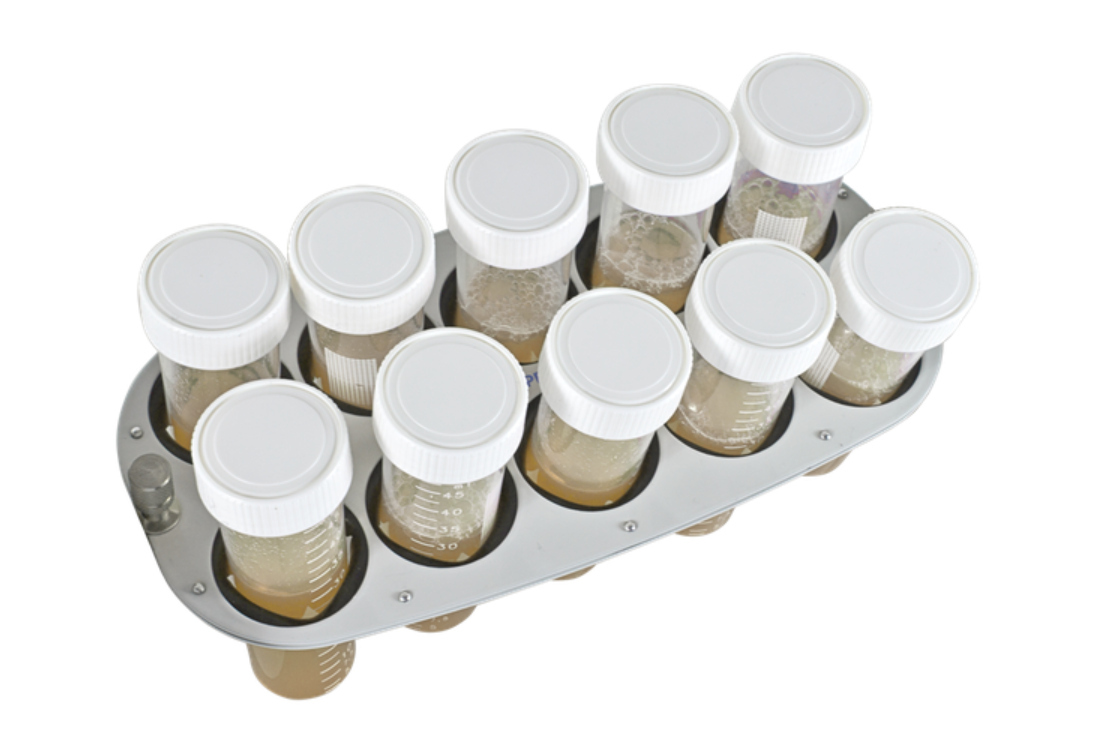

PRS-10:

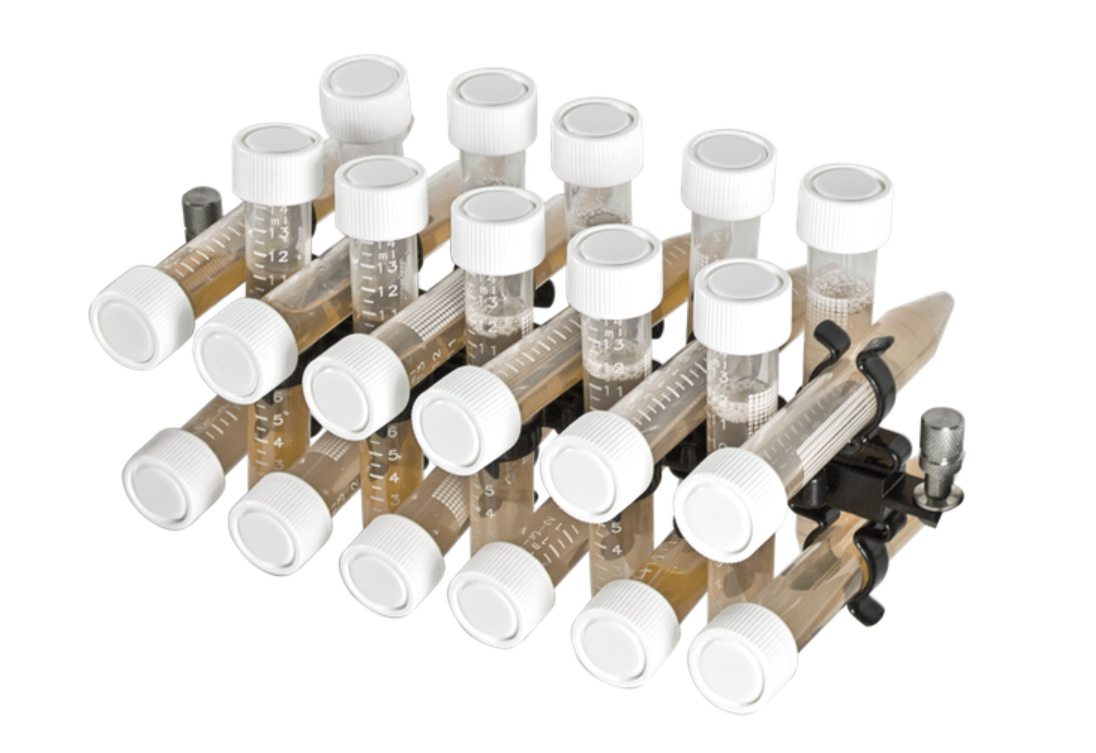

PRSC-22:

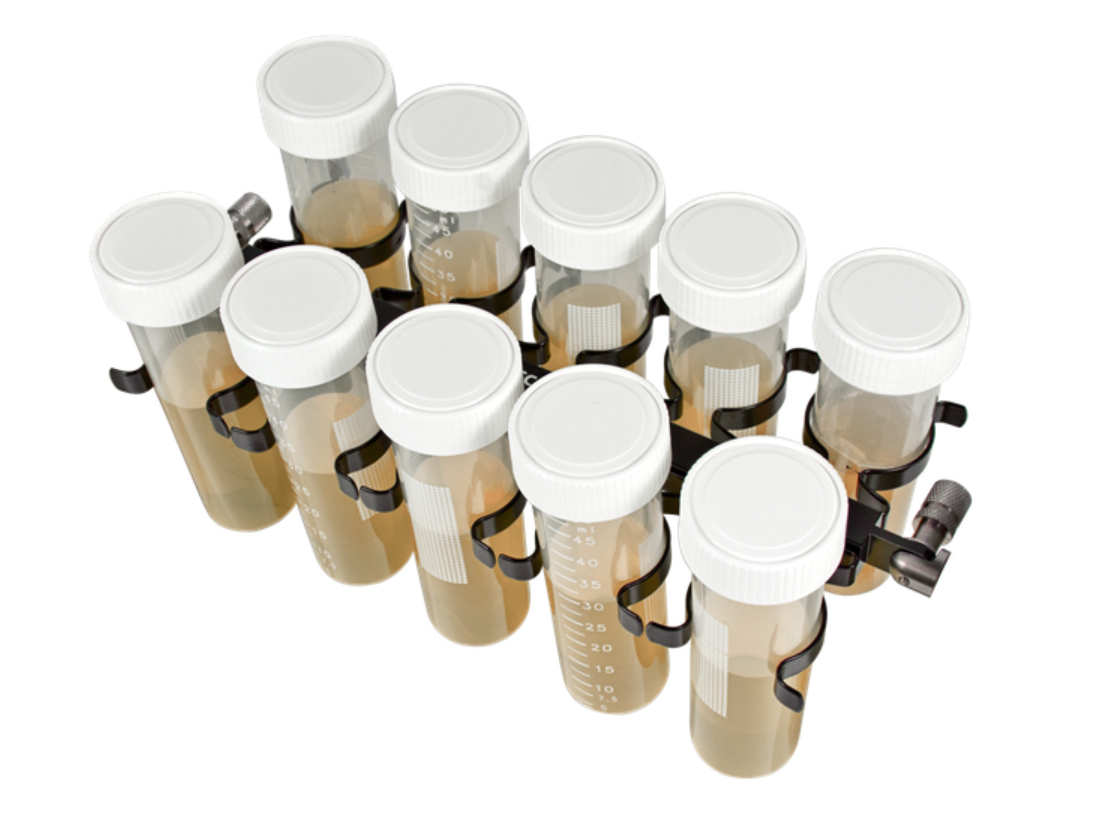

PRSC-10:

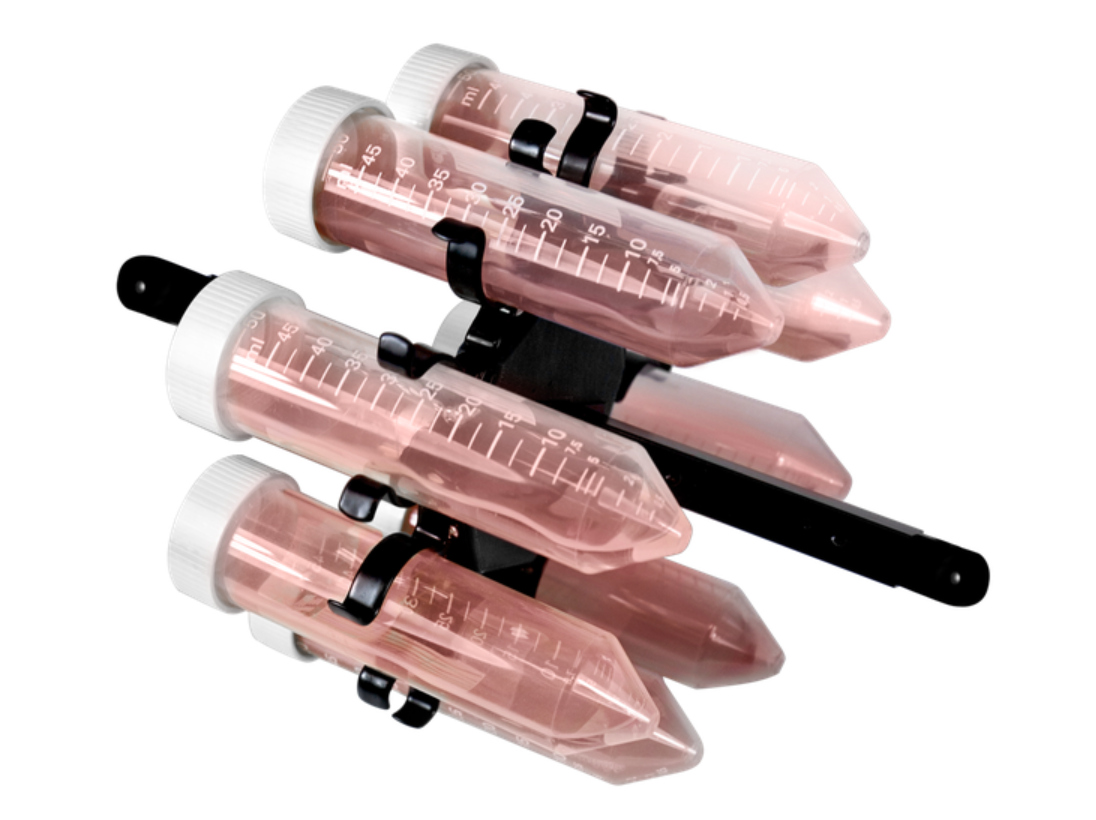

M-8/50:

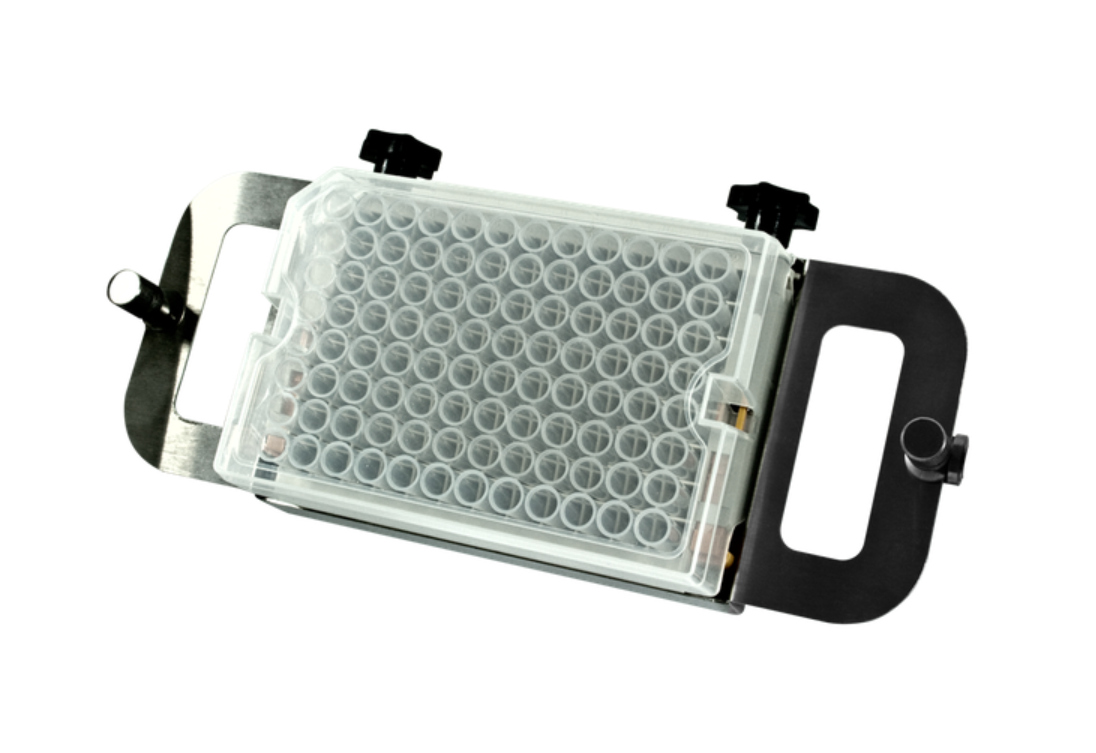

PRS-1DP:
| Ordering Information | Order Code |
|---|---|
| Multi Bio RS-24 Programmable Rotator, 230 VAC 50/60 Hz | BS-010117-AAG |
| PRS-26 | BS-010117-GK |
| PRS-5/12 | BS-010117-HK |
| PRS-10 | BS-010117-IK |
| PRSC-22 | BS-010117-LK |
| PRSC-10 | BS-010117-LK |
| M-8/50 | BS-010117-PK |
| PRS-1DP | BS-010149-DK |
Specifications
| Vertical rotation speed control range | 1-100 rpm (increment 1 rpm) |
|---|---|
| Vertical rotation movement | overhead, 360° |
| Vertical rotation time setting range | 0 - 250 sec |
| Reciprocal rotation speed control range | 1–100 rpm (increment 1 rpm) |
| Reciprocal rotation tilt angle range | 1° - 90° (increment 1°) |
| Reciprocal rotation time setting range | 0 - 250 sec |
| Vibro rotation tilt angle range | 0° - 5° (increment 1°) |
| Vibro rotation Pause / Vibro time setting range | 0 - 5 sec |
| Digital time setting | 1 min–24 hrs / non–stop (increment 1 min) |
| Maximum load | 0.5 kg |
| Overall dimensions (W × D × H) | 36.5 x 19.5 x 15.5 cm |
| Weight | 1.7 kg |
| Input current/power consumption | 12V, 660 mA / 8W |
| External power supply | Input AC 100–240V 50/60 Hz; Output DC 12V |
Applications
- Hybridization reactions
- Cell growing
- Soft extraction
- Homogenisation of biological components in solutions
- Binding and washing magnetic particles
