Laboratory Incubator
CLN53STD
Laboratory incubator for incubating samples in stable temperature conditions - regardless of the ambient temperature (the maximum range to 100°C).
Features :
- +5°C above ambient temperature -> +100°C
- Working capacity 56L
- Interior made of acid-proof stainless steel to DIN 1.4301
- Several sizes and options avaiable
- Six-segment temperature-time profile
- Natural Air Convection
Description
Applications
Specifications
Resources
Description
- Six-segment temperature-time profile
- Loop function up to 99 times or endless
- 3 user programs memory
- Adjustable start delay feature (from 1 min to 99:59 h)
- Adjustable hold at set point time for temperature and lighting (for IL/FOT) from 1 min to 100 days, or continuous operating
- Adjustable ramps
- Overview of set and current parameters while operating
- Recording of min, average and max temperature value for each segment
- Possibility of temperature calibration by the user
- Audible and visual temperature alarm
- Operating with temperature priority
- Temperature sensor fail alarm
- Power failure control system (program continued after restoring power)
- Digital timer
- Real time clock
- Auto-diagnostic function
- Internal memory to store up to 2,046 data records
Specifications
Technical data
| TYPE: | CLN 53 |
| air convection: | natural |
| chamber capacity [l] /1/ | 56 |
| working capacity [l] | 56 |
| sterownik | microprocessor with external LCD graphic display |
| TEMPERATURE | |
| temperature range [°C] | +5°C above ambient temperature … +100°C |
| temperature resolution every … [°C] | 0.1 |
| over temperature protection | class 2.0 to DIN 12880 / class 3.1 (option) / class 3.1 in TOP+ |
| CHAMBER | |
| door type | double / door with viewing window (option) |
| interior | |
| STD | acid-proof stainless steel to DIN 1.4301 |
| INOX/G | acid-proof stainless steel to DIN 1.4301 |
| housing | |
| STD | powder coated sheet |
| INOX/G | stainless steel linen finish |

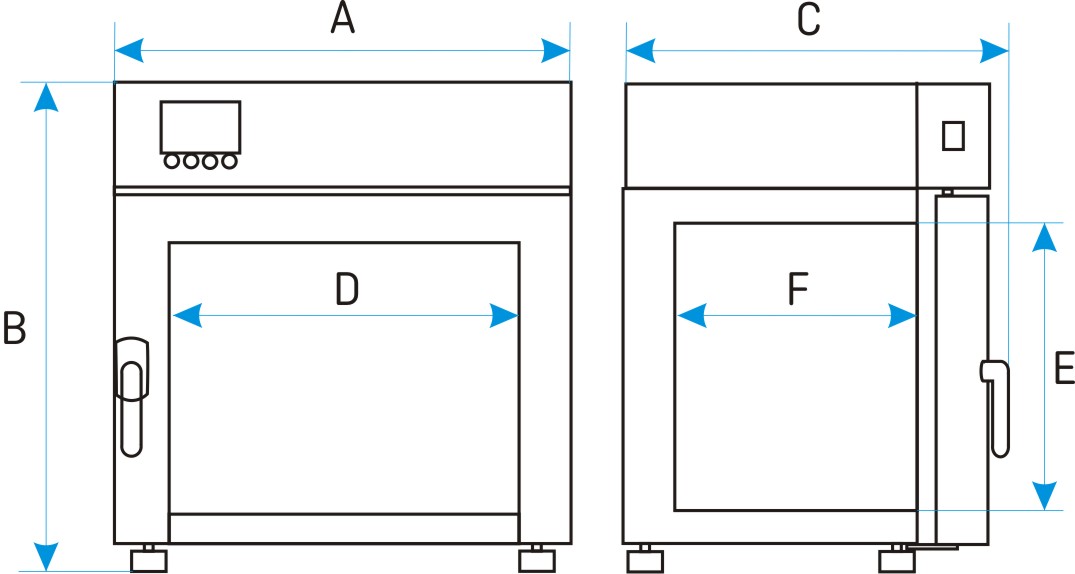

| overall dims [mm] /2/ | |
| width A | 590 |
| height B | 700 |
| depth C | 600 |
| internal dims [mm] | |
| width D | 400 |
| height E | 390 |
| depth F | 360 |
 | |
| TECHNICAL DATA | |
| shelves (standard max) | 2 / 5 |
| max shelf workload [kg] /5/ | 25 |
| - reinforced shelf version (PW) /3/ | 50 |
| max unit workload [kg] | 40 |
| - reinforced unit version (W) /4/ | 80 |
| weight [kg] | 50 |
| voltage* | 230V 50 Hz |
| nominal power [W] | 400 |
| warranty | 24 months |
| all the above technical data refer to standard units (without optional accessories) * - 230V 60 Hz, 115V 60 Hz also available 1 - working capacity of chamber can be smaller 2 - depth doesn't include 50 mm of power cable 3 - reinforced shelf 4 - reinforced version 5 - on uniformly loaded surface | |
Applications
- Incubation of samples for microbiological determinations
- Analysis of thermal resistance of samples subjected to higher temperatures
- Antibodies tests
- Bacteria tests
- Crystallization observations
- Cultivation of thermophilic microorganisms
- Pharma stability tests
- Food industry denaturalizing tests
