LabGene-8C Isothermal Fluorescence PCR SystemView larger

LABGENE-8C Isothermal Fluorescence PCR System

LI8C

LABGENE-8C/LABGENE-8C2 is a compact and sensitive Isothermal Fluorescence PCR system, suitable for field based and point of care diagnostic applications.

Features :

  • Small footprint, easy to use, suitable for bench top and field applications
  • 7 inch touch screen, stand-alone operation
  • Supports up to 8 standard 0.2 ml tubes
  • One channel or two channel fluorescence detection per tube

More details

Description
Specifications
Resources

Description

LABGENE-8C is a single-channel isothermal fluorescence PCR portable instrument, LabGene-8C2 is a dual-channel isothermal fluorescence PCR portable instrument.

Both systems have been designed to run any isothermal amplification method that employs target detection by fluorescence measurement like LAMP (Loop-mediated isothermal amplification). They have low power requirements and include a rechargeable lithium-polymer battery that can keep the system running for up to 5 hours.

LABGENE-8C/8C2 features a 7 inch touch screen. Real-time temperature and fluorescence data are displayed graphically during a run and the data is stored on the instrument’s large internal flash memory. Data can be reviewed at any time after the run has finished, it can also be uploaded to a PC or an Android mobile via a USB link or WI-FI.

Features

  • Small footprint, low-cost and easy to use, suitable for bench top and field applications
  • Purpose-designed sophisticated instrument that supports any isothermal DNA/RNA amplification method employing fluorescence readout
  • 7 inch touch screen, stand-alone operation
  • Supports up to eight standard 0.2 ml tubes
  • Choose between one channel or two channel fluorescence detection systems
  • Easy to use advanced desktop software or mobile application (Android mobile) for system management and export
  • Testing temperature range RT to 99°C
  • PC software, mobile application and bulit-in software for powerful data analysis and review
  • Easy data access via USB interface or WI-FI
  • A printer can be connected via USB cable

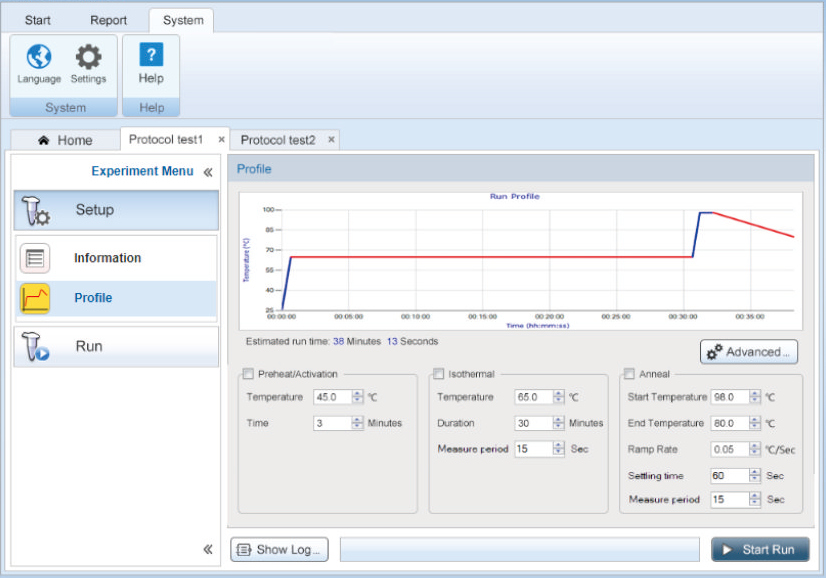

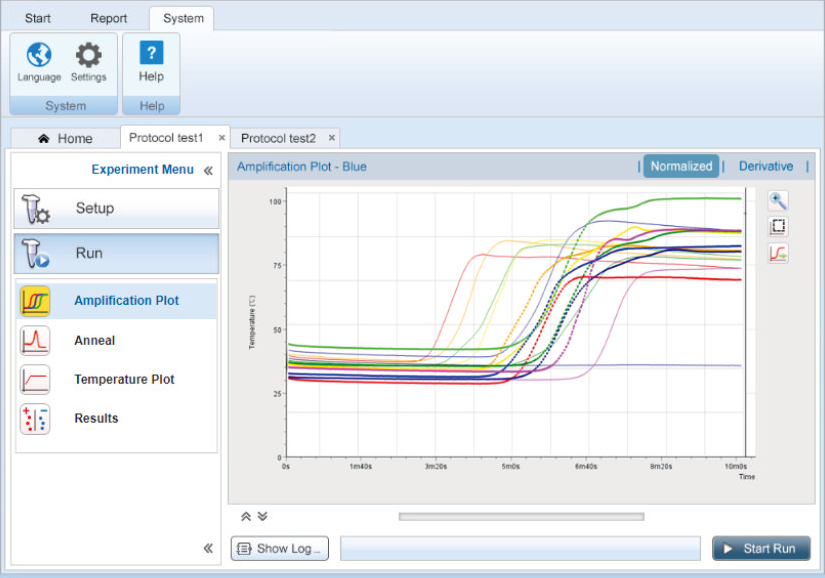

PC software interface


Built-in software

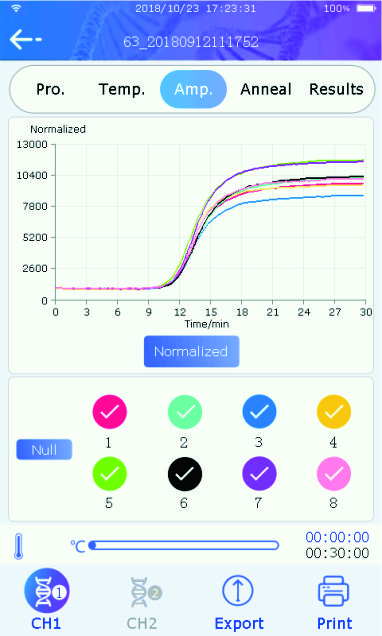

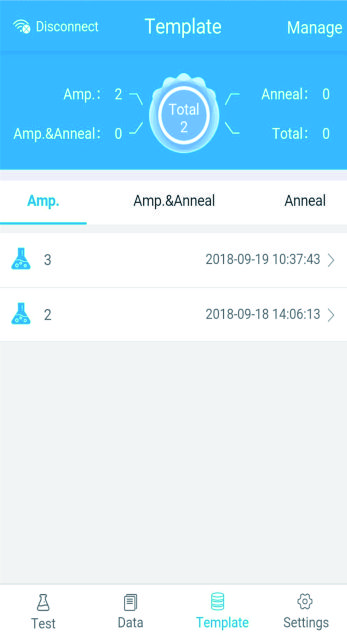

Android mobile's application


Specifications

LABGENE-8CLABGENE-8C2
 Sample number8 wells (1x8 strip)8 wells (1x8 strip)
 Sample volume15 µl - 150 µl15 µl - 150 µl
 Touch screen7 inch7 inch
 Temperature control rangeambient - 99°Cambient - 99°C
 Temperature accuracy±0.1°C±0.1°C
 Temperature uniformity±0.15°C±0.15°C
 Heating speed2°C/s2°C/s
 Cooling speed2°C/s2°C/s
 Channelsonetwo
 Optics sourceF1: 470 nmF1: 470 nm
F2: 590 nm
 DetectionF1: 525 nmF1: 525 nm
F2: 630 nm
 Power adapter DC15V 8ADC15V 8A
 Dimensions (W x D x H)
14.5 x 30.5 x 10.0 cm14.5 x 30.5 x 10.0 cm
 Weight1.9 kg 1.9 kg
Catalog numberLI8CLI8C2
