DS-C Cuvette Spectrophotometer
DSC
The DeNovix DS-C is a simple-to-use UV-Vis cuvette spectrophotometer with outstanding dynamic range, sensitivity and flexibility. Rapidly quantify biomolecules using any cuvette with an 8.5 mm z-height.
Features :
- Android™ OS with intuitive EasyApps®
- 32 GB for millions of results and methods
- Optional fluorescence upgrade
Description
DS-C cuvette mode
Enables up to 10 mm pathlength measurements using standard quartz or disposable cuvettes extending the UV-Vis lower detectible limit. The built-in cuvette heater controls temperatures for Kinetics studies. These added features provide a full range of UV-Vis absorbance quantitation in a single instrument.
Easy to learn. Fast to use.
DS-C instruments feature the most powerful and intuitive software of its type. Designed by life scientists, pre-installed EasyApps® and a breakthrough Android™ touchscreen interface delivers error-free operation and sample to data in under 4 seconds. Every instrument is ready to measure right out of the box – no PC set-up or software installation.
High sensitivity
Measure samples with concentrations as low as 0.04 ng/ul of purified dsDNA or 0.002 mg/ml purified BSA.
Kinetics
Create simple kinetics methods measuring two absorbance wavelengths over a user-defined measurement frequency and period. EasyApps® streamlines the process to create and save custom methods and enables cuvette temperature control between 37°C to 45°C.
Cell culture OD 600
The high-particulate nature of bacterial cell cultures benefit from a longer measurement pathlength. The particulates in these samples scatter light, and a 10 mm pathlength provides a longer cross-section of the sample for the spectrophotometer’s light beam to travel through. This ensures the highest degree of accuracy and reproducibility when measuring these types of samples.
Connect to your results
Built-in Wi-Fi, Ethernet and USB allows easy export of data you want in the format you need. Email a .csv or color .jpg of your results, save data to LIMS or network drives, print results or graphs to network and label printers and more !
Upgrade to fluorescence
To take advantage of enhanced sensitivity and specificity, the DS-C can be upgraded to add fluorescence capability with the addition of the FX module allowing any DS-C to also function as a highly sensitive fluorometer. Alternatively, the DS-11 FX Series integrates both microvolume, cuvette absorbance and fluorescence into one compact instrument.
Color choices
The DS-C is available in four color choices :
Specifications
Spectrophotometer microvolume mode (DS-11, DS-11+, DS-11 FX, DS-11 FX+) | |
|---|---|
| Minimum sample size | 0.5 µl |
| Pathlength | 0.5 mm (auto ranging to 0.02 mm) |
| Light source | Pulsed Xenon flash lamp |
| Detector type | 2,048 element CCD |
| Wavelength range | 190-840 nm |
| Wavelength accuracy | 0.5 nm |
| Spectral resolution | 1.5 nm (FWHM at Hg 253.7 nm) |
| Absorbance precision | 0.015 AU (1 cm), or 1%, whichever is greater |
| Absorbance accuracy | 1.5% at 0.75 AU at 260 nm |
| Absorbance range | 0.015 – 750 (1 cm equivalent) |
| Detection limit | 0.04 mg/ml BSA; 0.75 ng/µl dsDNA |
| Maximum concentration | 1,125 mg/ml BSA; 37,500 ng/µl dsDNA |
| Lower sample surface material of construction | 303 stainless steel and sapphire window |
| Upper sample surface material of construction | 303 stainless steel and quartz fiber |
Spectrophotometer cuvette mode (DS-C, DS-11+, DS-11 FX+) | |
|---|---|
| Beam height | 8.5 mm |
| Heating | 37-45°C +/- 0.5 °C |
| Pathlength | 10, 5, 2, 1, 0.5, 0.2, 0.125 mm |
| Absorbance range | 0.0008-1.5 AU (1 cm) |
| Detection limit | 0.002 mg/ml BSA; 0.04 ng/µl dsDNA (1 cm) |
| Maximum concentration | 75 ng/µl dsDNA (1 cm) |
| Light source | Pulsed Xenon flash lamp |
| Detector type | 2048 element CCD |
| Wavelength range | 190-840 nm |
| Wavelength accuracy | 0.5 mm |
| Spectral resolution | 1.5 nm (FWHM at Hg 253.7 nm) |
| Absorbance precision | 0.015 AU (1 cm), or 1%, whichever is greater |
| Absorbance accuracy | 1.5% at 0.75 AU at 260 nm |
Fluorometer mode (DS-11 FX, DS-11 FX+ and FX module) | |
|---|---|
| Light sources | UV LED (~375 nm), Blue LED (~470 nm), |
| Green LED (~525 nm), Red LED (~635 nm) | |
| Excitation filters | UV: 361-389 nm, Blue: 442-497 nm, |
| Green: 490-558 nm, Red: 613-662 nm | |
| Emission filters | 435-485 nm, 514-567 nm, 565-650 nm, 665-740 nm |
| Detectors | Photodiode, detection range 300-1,000 nm |
| Tube type | 0.5 ml Real-Time thin-wall PCR tube (polypropylene) |
Onboard controller (no PC required) | |
|---|---|
| Operating system | Custom Android™ OS |
| CPU | TI OMAP 1.5 GHz Dual Core ARM Processor |
| Display | 1280 x 800 high definition color display |
| User input | Touch screen with swipe and pinch motion; glove compatible |
| Internal storage | 32 GB flash drive |
| Connectivity | 3 USB ports for printer, barcode reader and USB drive |
| Networking | Ethernet and Wi-Fi |
General | |
|---|---|
| Colors | Arctic White, Brazilian Blue, Fire Red, Tungsten Silver |
| Measurement time for spectrophotometry | 2 seconds |
| Measurement time for fluorescence | 2 seconds |
| Footprint | 20 cm x 33 cm |
| Weight | 2 kg |
| Operating voltage | 12 VDC |
| Operating power consumption | 10W; max 30W |
| Approvals | CE, UL/CSA, FCC and Japan CAB |
| Manufacture location | USA |
Applications
DS-C key features

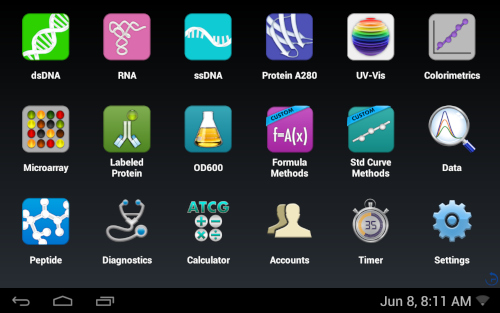

- Intuitive app Icons for quick recognition
- Familiar Android navigation touch gestures and functional icons
- Fluid pinch, zoom glove compatible touch interface
- AutoRun option for streamlined operation
- Optimized screens for reports and graph overlays
- Password protected accounts for project and data management
- Absorbance represented as 1 cm equivalent for all apps- no confusion between applications
- Sample name field is key-focused for easy barcode reader use
- All data is automatically archived and easily exported in tab-delimited format
Absorbance :
- Separate preconfigured apps for optimized workflow
- Preconfigured and user defined factors for ssDNA ensures appropriate concentration calculations
- High absorbance capability: up to 37,500 ng/ul for dsDNA
- 260/280 and 260/230 ratios displayed
- 11 Preconfigured dyes and fluorophores for Microarray
- Option to add an unlimited number of new dyes for quick recall in Microarray
